Octorail System

Description

The Octopost rails are treated in the exact same way as their posts are. The rail has a half octagonal profile therefore the completed fence is very pleasing to the eye.

The rails come in two lengths 3.5m and 4.2m and have a overlapping joint. This makes erecting the fence far simpler as the rail ends do not have to end on the post.

See below a drawing for a recommended system for using 3 rows of the 4.2m length rails and 2.1m posts. All Octowood recommended rail systems found below.

Octopost image 1 website with strap line

Octopost-erected-fences-4 - copy

Octoposts (2) - copy

Octopost erected fences (1) - copy

IMG_2389 - copy

Octopost Creosote fencing posts with 25 year guarantee (1) - copy

Octoposts (7) - copy

Octopost Creosote fencing posts with 25 year guarantee (4) - copy

Octopost Creosote fencing posts with 25 year guarantee (5) - copy

Octopost image 1 website with strap line b

Octoposts (6) - copy

Octoposts (5) - copy

Octopost equestrian - creosoted fencing post with 25 year guarantee amended (5)

Octopost equestrian - creosoted fencing post with 25 year guarantee amended (4)

Octopost equestrian - creosoted fencing post with 25 year guarantee amended (3)

Octopost equestrian - creosoted fencing post with 25 year guarantee amended (2)

Rail lengths

95mm x 4200mm (overall length once fitted 3.95 metres)
95mm x 3500mm (overall length once fitted 3.26 metres)

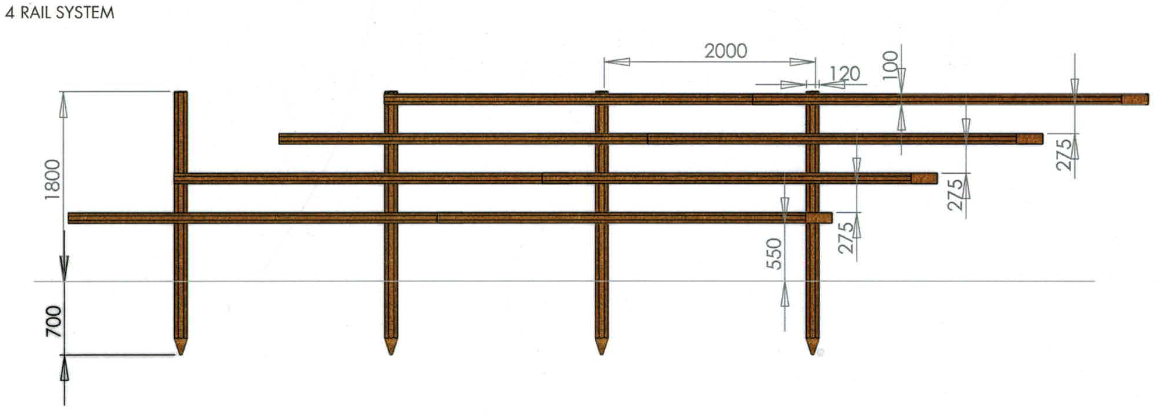

4 Rail System

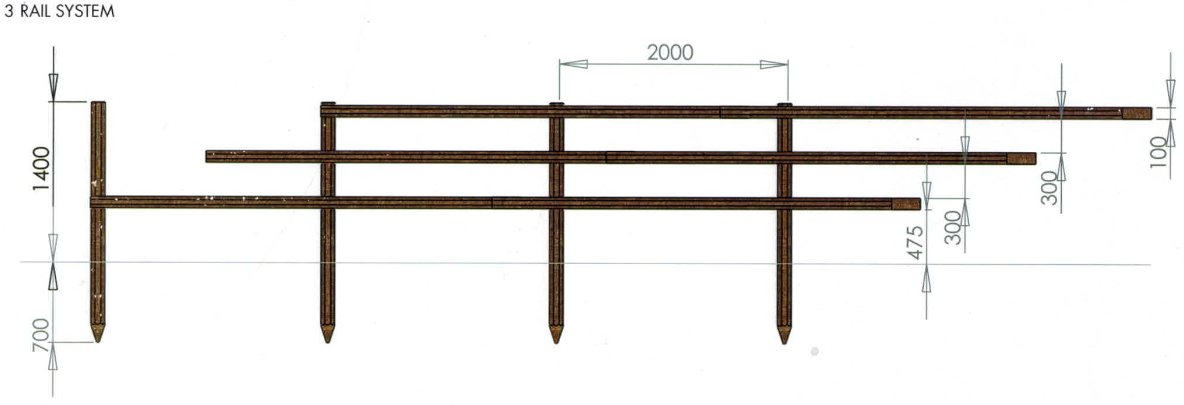

3 Rail system

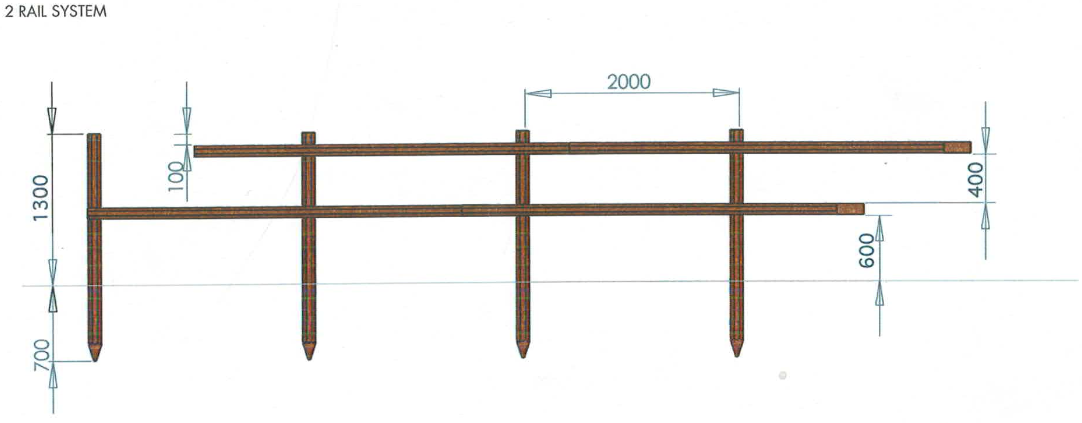

2 Rail system

Safety precautions when working with Creosote

It is advised that protection for for skin and eyes be used at all times when working with creosote. Please use the following link to access Octopost Safety Data Sheet Please refer to section 8 for more information on what protection is recommended.

If required, more information can be obtained from HSE
